18U 27U 42U Sheet Metal Bending Parts Server Rack Enclosure

Stainless Steel Seismic Server Rack Metal Cabinet Sheet Metal Bending Parts

Traditional Deep Drawing Operation

1. Material Selection: Begin by selecting the appropriate sheet metal material, considering factors like material type, thickness, and formability, typically using metals like stainless steel or aluminum.
2. Die and Punch Design: Design a deep drawing die and punch set with the desired three-dimensional shape to be formed from the sheet metal.
3. Sheet Material Preparation: Cut or blank the sheet metal into appropriately sized blanks that match the design requirements.
4. Blank Placement: Securely position the sheet metal blank in the deep drawing press, ensuring it is aligned with the die and punch set.
5. Deep Drawing Process: Activate the press to apply controlled force through the punch, drawing the sheet metal into the die cavity to form the desired three-dimensional shape.

The RB-AV Series is a cost-effective rack cabinet that is ideal for A/V and Security applications. Fully assembled, the RB-AV Series includes removable factory-installed shelves, filler panels, casters, levelling feet and tapped 10-32 mounting rails.

Features

• Available in 18U, 27U, and 42U mounting heights.
• Available in 23.62" overall width and depth.
• Passive cooling vents are located on the top, bottom and sides.
• Includes top vents for up to two (2) optional fans on the top panel.
• Ships fully assembled and ready for installation on-site.
• Doors can be flipped to hinge from the opposite side.

Specifications

• Constructed in 16-gauge steel.
• Drilled and 10-32 tapped flange 19" mounting rails are constructed in 13-gauge steel, and are powder coat finished.
  • Rails easily adjust in-depth in 1/4" increments.
• 950 lbs (431 kg) load rating.
• Grounding studs bonded to frame, side panels and doors.
• Finished in smooth matte black powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• RoHS Compliant.

Included Components

• Steel frame with factory-installed levelling feet recessed casters and grounding studs. Casters and levelling feet are removable.
• Two (2) pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
  • Starter pack of (50) 10-32 screws included.
• One (1) lightly smoked tempered glass front door with a quarter-turn lock.

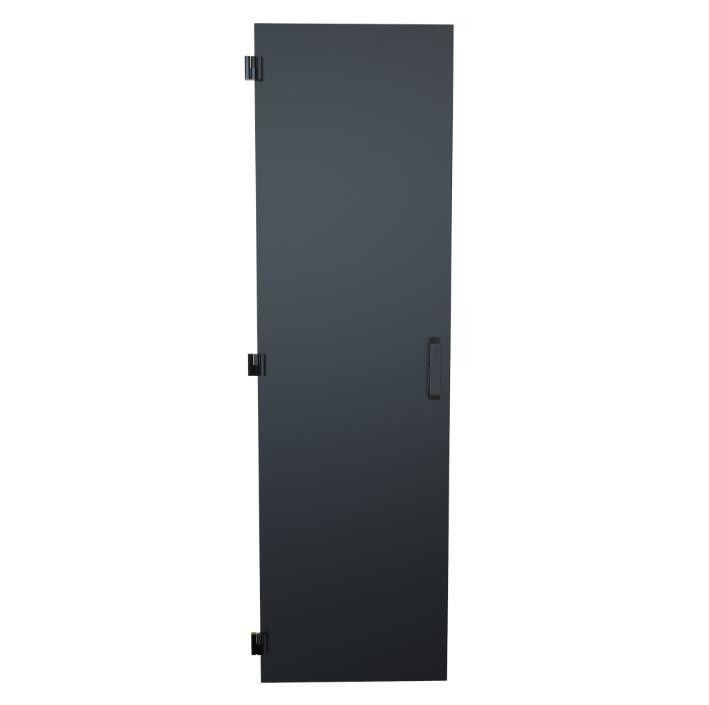

• One (1) solid steel rear door with a quarter-turn lock.
• Two (2) solid removable side panels with quarter-turn lock.
• Removable cable access panels on cabinet top and bottom.
• Includes factory-installed vented rack shelves and filler/blank panels (see table below for quantity).
